| Part No. | View Picture | Color | λd | Lens Type | Luminous Intensity IV(Min) | Luminous Intensity IV(Typ) | Forward Voltage VF(Typ) | Forward Voltage VF(Max) | Reverse Current(IR) | Viewing Angle (2θ 1/2) | |

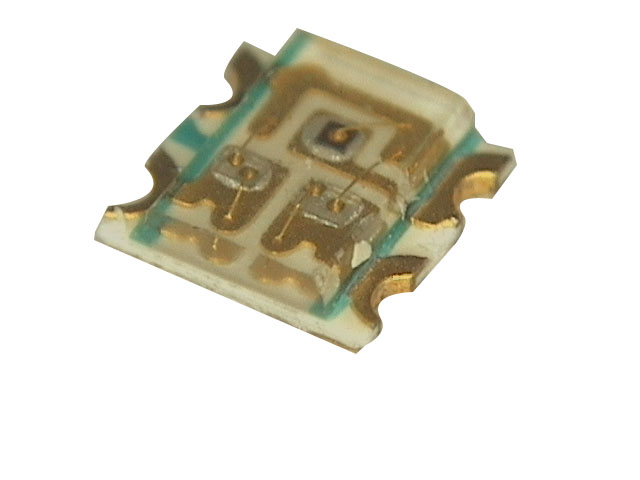

| FSL-1616035RPGY-K4TNZPR-CA |
/FSL-1616035RPGB.jpg)
|
▉green ▉red ▉yellow |
green:530nm,red:631nm,yellow:589nm | Water Clear | green:71mcd,red:18mcd,yellow:28mcd | green:180mcd,red:45mcd,yellow:75mcd | green:3.3v,red:2.0v,yellow:2.0v | green:3.9v,red:2.4v,yellow:2.4v | 10μA | 130° |
|
| FSL-1616035RPGB-N4TSZ-CC |
|
▉red ▉green ▉blue |
red:20nm,green:35nm,blue:35nm | Water Clear | red:18mcd,green:28.5mcd,blue:11.5mcd | red:30mcd,green:60mcd,blue:18mcd | red:2v,green:3v,blue:3v | red:2.2v,green:3.3v,blue:3.3v | 10μA | 120° |
|
| FSL-1616035RPGB-N4TSZ |
|
▉red ▉green ▉blue |
red:631nm,green:530nm,blue:470nm | Water Clear | red:72mcd,green:120mcd,blue:45mcd | red:112mcd,green:280mcd,blue:72mcd | red:2.0v,green:3.3v,blue:3.3v | red:2.4v,green:3.9v,blue:3.9v | 10μA | 130° |
|
| FSL-1616035RPGB-N4TNNJSHY |
|
▉red ▉green ▉blue |
red:631nm,green:530nm,blue:470nm | Water Clear | red:72mcd,green:112mcd,blue:28.5mcd | red:100mcd,green:180mcd,blue:50mcd | red:2.0v,green:3.3v,blue:3.3v | red:2.4v,green:3.9v,blue:3.9v | 10μA | 130° |
|
| FSL-1616035RPGB-N4TNNJPR |
|
▉red ▉green ▉blue |
red:631nm,green:530nm,blue:470nm | Water Clear | red:72mcd,green:112mcd,blue:28.5mcd | red:100mcd,green:180mcd,blue:50mcd | red:2.0v,green:3.3v,blue:3.3v | red:2.4v,green:3.9v,blue:3.9v | 10μA | 130° |
|
| FSL-1616035RPGB-N4TNBLX-4CA |
|
▉red ▉green ▉blue |
red:631nm,green:530nm,blue:470nm | Water Clear | red:72mcd,green:112mcd,blue:28.5mcd | red:100mcd,green:180mcd,blue:50mcd | red:2.0v,green:3.3v,blue:3.3v | red:2.4v,green:3.9v,blue:3.9v | 10μA | 130° |
|
| FSL-1616035RPGB-N4TCPR |
|
▉red ▉green ▉blue |
red:620nm,green:527nm,blue:470nm | Water Clear | red:18mcd,green:28.5mcd,blue:11.5mcd | red:30mcd,green:60mcd,blue:18mcd | red:2.0v,green:3.0v,blue:3.0v | red:2.2v,green:3.3v,blue:3.3v | 10μA | 120° |
|
| FSL-1616035RPGB-N4TCDXH |
|
▉red ▉green ▉blue |
red:631nm,green:530nm,blue:470nm | Water Clear | red:72mcd,green:112mcd,blue:28.5mcd | red:100mcd,green:180mcd,blue:50mcd | red:2.0v,green:3.3v,blue:3.3v | red:2.4v,green:3.9v,blue:3.9v | 10μA | 130° |
|
| FSL-1616035RPGB-N4TCCJY |
|
▉red ▉green ▉blue |
red:631nm.green:530nm,blue:470nm | Water Clear | red:72mcd.green:112mcd,blue:28.5mcd | red:100mcd.green:180mcd,blue:50mcd | red:2.0v.green:3.3v,blue:3.3v | red:2.4v.green:3.9v,blue:3.9v | 10μA | 130° |
|
| FSL-1616035RPGB-N4T5NCZPR |
|
▉red ▉greem ▉blue |
red:620nm,green:527nm,blue:470nm | Water Clear | red:18mcd,green:28.5mcd,blue:11.5mcd | red:30mcd,green:60mcd,blue:18mcd | red:2.0v,green:3.0v,blue:3.0v | red:2.2v,green:3.3v,blue:3.3v | 10μA | 120° |
|
