| Part No. | View Picture | Color | λd | Lens Type | Luminous Intensity IV(Min) | Luminous Intensity IV(Typ) | Forward Voltage VF(Typ) | Forward Voltage VF(Max) | Reverse Current(IR) | Viewing Angle (2θ 1/2) | |
| FSL-20125110Y-KATNWG |

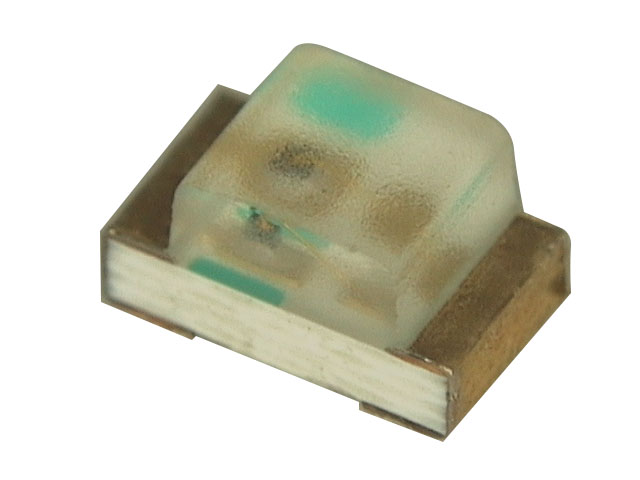

/FSL-20125110G.jpg)
|
▉yellow |
589.5nm | water clear | 45mcd | 72mcd | 2.2v | 2.6v | 10μA | 130° |
|
| FSL-20125110Y-KATNKYXKB |
|
▉yellow |
588nm | water clear | 36mcd | 150mcd | 2.0v | 2.5v | 10μA | 130° |
|
| FSL-20125110Y-FATNC3 |
|
▉yellow |
589.5nm | water clear | 45mcd | 72mcd | 2.2v | 2.6v | 10μA | 130° |
|
| FSL-20125110TB-TNCCL |
|
▉blue |
470nm | water clear | 45mcd | 112mcd | 3.0v | 10μA | 130° |
|
|
| FSL-20125110TB-TC3 |
|
▉blue |
470nm | water clear | 80mcd | 120mcd | 3.4v | 3.8v | 10μA | 130° |
|
| FSL-20125110TB-FATNDS |
|
▉blue |
470nm | water clear | 18mcd | 25mcd | 2.8v | 10μA | 130° |
|
|
| FSL-20125110R-TCNHQ |
|
▉red |
631nm | water clear | 112mcd | 2.0v | 2.6v | 10μA | 130° |
|
|
| FSL-20125110R-TCNHB |
|
▉red |
625nm | water clear | 165mcd | 300mcd | 2.1v | 2.6v | 10μA | 130° |
|
| FSL-20125110R-TC3 |
|
▉red |
631nm | water clear | 112mcd | 2.0v | 2.6v | 10μA | 130° |
|
|
| FSL-20125110R-KATNWG |
|
▉red |
631nm | water clear | 112mcd | 2.0v | 2.6v | 10μA | 130° |
|
