| Part No. | View Picture | Color | λd | Lens Type | Luminous Intensity IV(Min) | Luminous Intensity IV(Typ) | Forward Voltage VF(Typ) | Forward Voltage VF(Max) | Reverse Current(IR) | Viewing Angle (2θ 1/2) | |
| FSL-1005045R-FAT5NPR |
/FSL-1005045G.jpg)
|
▉Red |
631nm | Water Clear | 7.2mcd | 18mcd | 2.0v | 2.3v | 10μA | 130° |
|

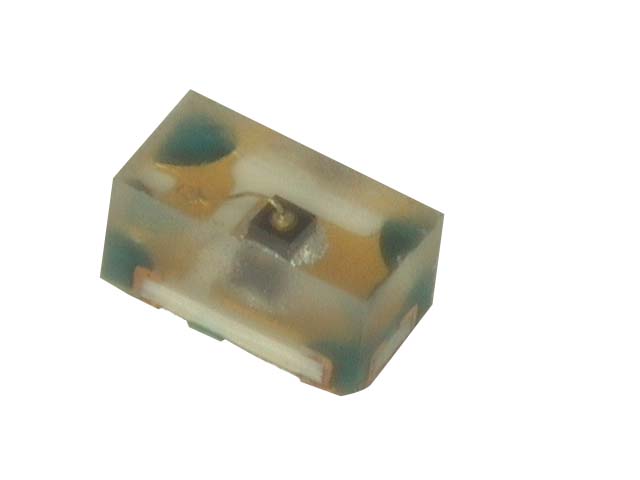

| FSL-1005045G-FAT5NPR |
|
▉ Green |
570nm | Water Clear | 11.2mcd | 45mcd | 1.9v | 2.3v | 100μA | 130° |
|
| FSL-1005050W-T5NQ1R2LPR |
|
▉White |
Yellow | 72mcd | 112mcd | 3.0v | 3.3v | 10μA | 130° |
|
|
| FSL-1005050TB-TNPR |
|
▉Blue |
470nm | Water Clear | 28mcd | 72mcd | 2.8v | 3.2v | 10μA | 130° |
|
| FSL-1005050TB-FATNQ1S2PR |
|
▉Blue |
470nm | Water Clear | 72mcd | 145mcd | 3.2v | 3.8v | 10μA | 130° |
|
| FSL-1005050TB-FATNQ1R2PR |
|
▉Blue |
470nm | Water Clear | 80mcd | 145mcd | 3.2v | 3.8v | 10μA | 130° |
|
| FSL-1005050R-LAT5NPR |
|
▉Red |
631nm | Water Clear | 7.2mcd | 18.0mcd | 2.0v | 2.3v | 10μA | 130° |
|
| FSL-1005050R-LAT5JY |
|
▉Red |
631nm | Water Clear | 7.2mcd | 18.0mcd | 2.0v | 2.3v | 10μA | 130° |
|
| FSL-1005050PG-FATNZPR |
|
▉Green |
530nm | Water Clear | 72mcd | 560mcd | 3.3v | 3.8v | 10μA | 130° |
|
| FSL-1005050PG-FAT2NNPR |
|
▉Green |
530nm | Water Clear | 7mcd | 56mcd | 2.9v | 3.1v | 10μA | 130° |
|
