| Part No. | View Picture | Color | λd | Lens Type | Luminous Intensity IV(Min) | Luminous Intensity IV(Typ) | Forward Voltage VF(Typ) | Forward Voltage VF(Max) | Reverse Current(IR) | Viewing Angle (2θ 1/2) | |
| FSL-1005050G-LAT5NPR |
|
▉Green |
570nm | Water Clear | 4.5mcd | 11.2mcd | 1.9v | 2.3v | 100μA | 130° |
|
| FSL-1005050A-FAT2NNPR |
|
▉Amber |
605nm | Water Clear | 2.8mcd | 4.5mcd | 2.0v | 2.2v | 10μA | 130° |
|
| FSL-1005045W-FATNS1U2XMZ |
|
▉White |
Yellow | 180mcd | 560mcd | 3.1v | 3.8v | 10μA | 130° |
|
|
| FSL-1005045W-FAT1NK1L2JCLX |
|
▉White |
Yellow | 7.2mcd | 18mcd | 3.1v | 3.8v | 10μA | 130° |
|
|
| FSL-1005045R-FAT1NPR |
/FSL-1005045G.jpg)
|
▉Red |
631nm | Water Clear | 1.8mcd | 10.0mcd | 1.5v | 2.0v | 10μA | 130° |
|

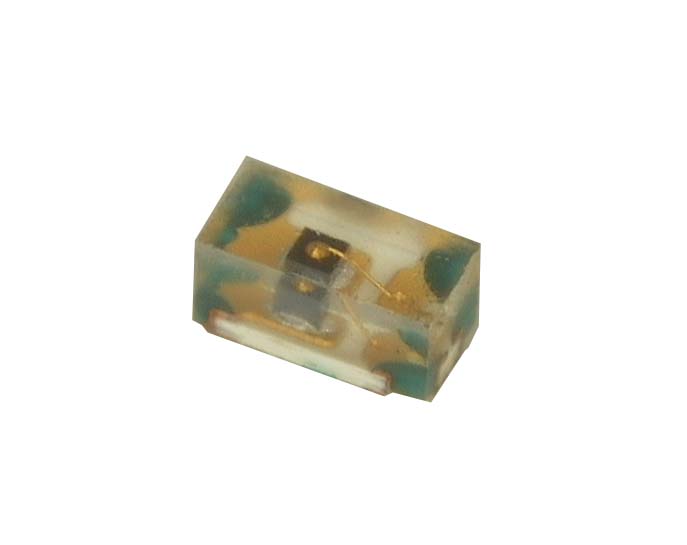

| FSL-1005035Y-KAT5ZPR |
/FSL-1005035Y.jpg)
|
▉Yellow |
589.5 | Water Clear | 7.2mcd | 36.0mcd | 2.0v | 2.3v | 10μA | 130° |
|

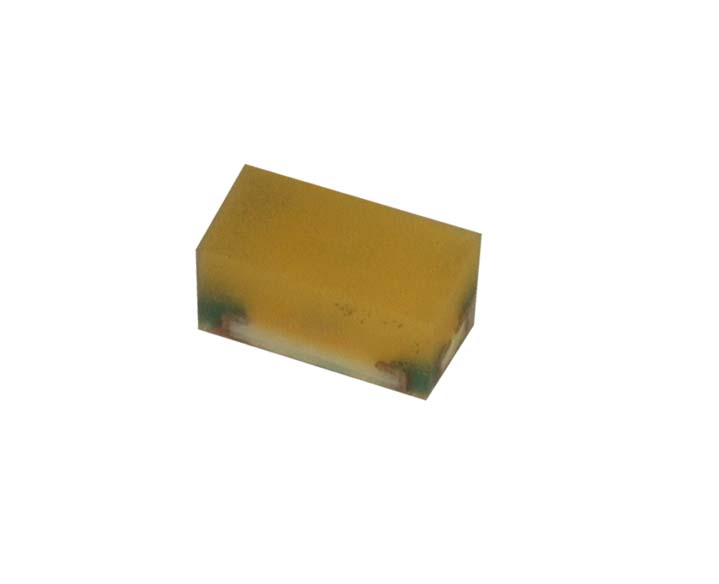

| FSL-1005035W-FAT5NQ1R2TQD |
/FSL-1005035W.jpg)
|
▉White |
Yellow | 72mcd | 90mcd | 2.7v | 3.0v | 50μA | 130° |
|
|
| FSL-1005035TB-TNPR |
|
▉Blue |
470nm | Water Clear | 28mcd | 72mcd | 3.2v | 3.8v | 10μA | 130° |
|
| FSL-1005035TB-T5NPR |
|
▉Blue |
465nm | Water Clear | 11mcd | 28mcd | 2.9v | 3.15v | 10μA | 130° |
|
| FSL-1005035R-LAT5NPR |
|
▉Red |
631nm | Water Clear | 7.2mcd | 18.0mcd | 2.0v | 2.3v | 10μA | 130° |
|
