| Part No. | View Picture | Color | λd | Lens Type | Luminous Intensity IV(Min) | Luminous Intensity IV(Typ) | Forward Voltage VF(Typ) | Forward Voltage VF(Max) | Reverse Current(IR) | Viewing Angle (2θ 1/2) | |
| FSL-3216190Y-KARNZPR |
|
▉Yellow |
589nm | Water Clear | 240 | 400 | 2.2 | 2.4 | 10μA | 50 |
|
| FSL-3216190R-RD3CZPR |
|
▉Red |
631nm | Water Clear | 50 | 110 | 2.0 | 2.4 | 10μA | 25 |
|
| FSL-3216190R-RD3C3 |
|
▉Red |
631nm | Water Clear | 50 | 110 | 2.0 | 2.4 | 10μA | 25 |
|
| FSL-3216190R-KARNZPR |
|
▉Red |
624nm | Water Clear | 280 | 560 | 2.0 | 2.4 | 10μA | 50 |
|
| FSL-3216190PG-EARNZPR |
|
▉Pure Green |
525nm | Water Clear | 1300 | 2300 | 3.4 | 4.1 | 100μA | 50 |
|
| FSL-3216190A-EARNNPR |
|
▉Orange |
601nm | Water Clear | 180 | 280 | 2.0 | 2.4 | 10μA | 25 |
|

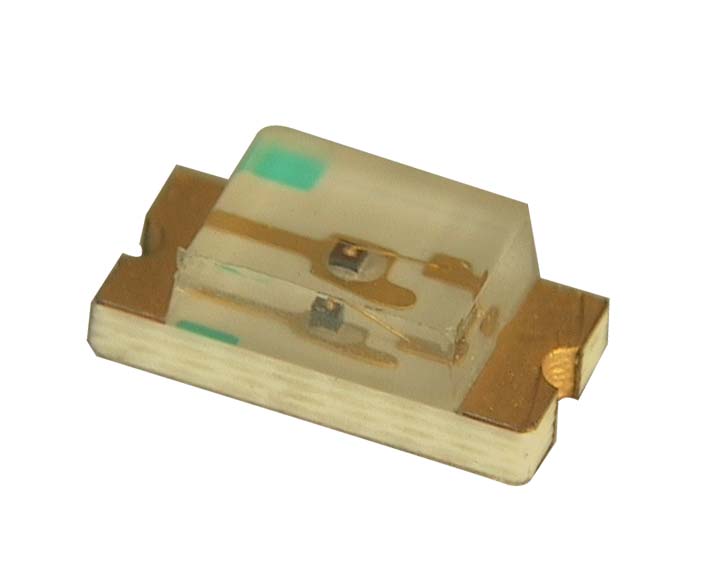

| FSL-3216110Y-TNCSHB |
/FSL-3216110R.jpg)
|
▉Yellow |
589.5nm | Water Clear | 45 | 72 | 2.2 | 2.6 | 10μA | 130 |
|
| FSL-3216110Y-TCNHQ |
|
▉Yellow |
589.5nm | Water Clear | 45 | 72 | 2.2 | 2.6 | 10μA | 130 |
|
| FSL-3216110Y-FAT25NSHC |
|
▉Yellow |
589.5nm | Water Clear | 45 | 180 | 2.2 | 2.6 | 10μA | 130 |
|

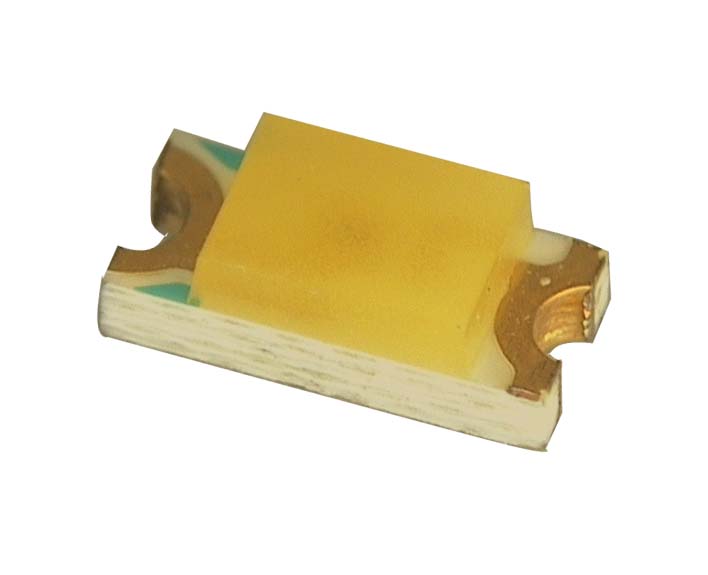

| FSL-3216110W-TNSHB |
/FSL-3216110W.jpg)
|
▉White |
X:0.31 Y:0.31 | Yellow | 180 | 360 | 3.2 | 3.5 | 50μA | 130 |
|
