| Part No. | View Picture | Color | λd | Lens Type | Luminous Intensity IV(Min) | Luminous Intensity IV(Typ) | Forward Voltage VF(Typ) | Forward Voltage VF(Max) | Reverse Current(IR) | Viewing Angle (2θ 1/2) | |

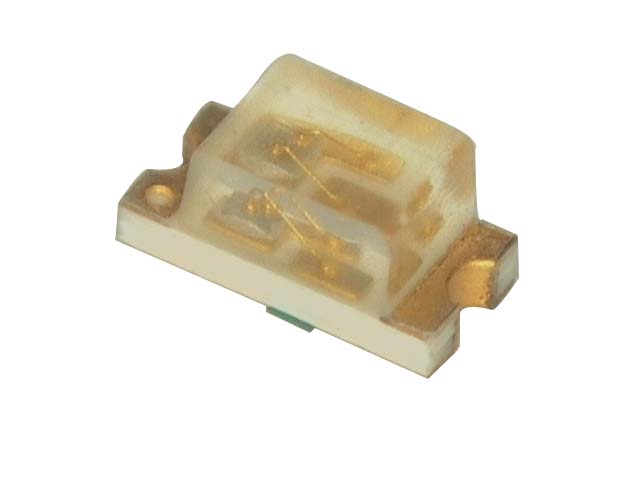

| FSL-1608075B-FATNC3 |
/FSL-1608075B.jpg)
|
▉Blue |
465nm | Water clear | 45 | 110 | 3.3 | 3.9 | 10μA | 120 |
|
| FSL-C1608040W-FATNY3 |
|
▉White |
X：0.3 Y：0.3 | Yellow | 180 | 280 | 3.3 | 3.7 | 10μA | 130 |
|
| FSL-C1608040TB-FATNC3 |
|
▉Blue |
470nm | Water clear | 112 | 180 | 3.0 | 3.7 | 10μA | 130 |
|
| FSL-C1608040R-FATNC3 |
|
▉Red |
631nm | Water clear | 72 | 112 | 2.0 | 2.5 | 10μA | 130 |
|
| FSL-C1608040F-FATNC3 |
|
▉Orange |
605nm | Water clear | 72 | 112 | 2.0 | 2.5 | 10μA | 130 |
|
| FSL-1608040Y-FATNC3 |
|
▉Yellow |
589.5nm | Water Clear | 45 | 72 | 2.0 | 2.5 | 10μA | 130 |
|

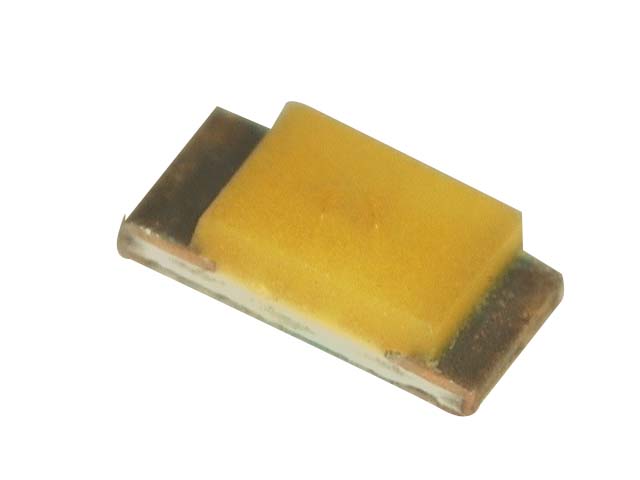

| FSL-1608040W-FAT5NY3 |
|
▉White |
X：0.31 Y：0.31 | Yellow | 45 | 100 | 3.0 | 3.3 | 10μA | 130 |
|
| FSL-1608040R-FATNC3 |
|
▉Red |
631.0nm | Water Clear | 28 | 120 | 2.0 | 2.5 | 10μA | 130 |
|
| FSL-1608040R-FAT5NC3 |
|
▉Red |
631.0nm | Water Clear | 11.2 | 45.5 | 2.0 | 2.3 | 10μA | 130 |
|
| FSL-1608040PG-FATNC3 |
|
▉Pure Green |
530nm | Water Clear | 72 | 180 | 3.3 | 3.7 | 10μA | 130 |
|
